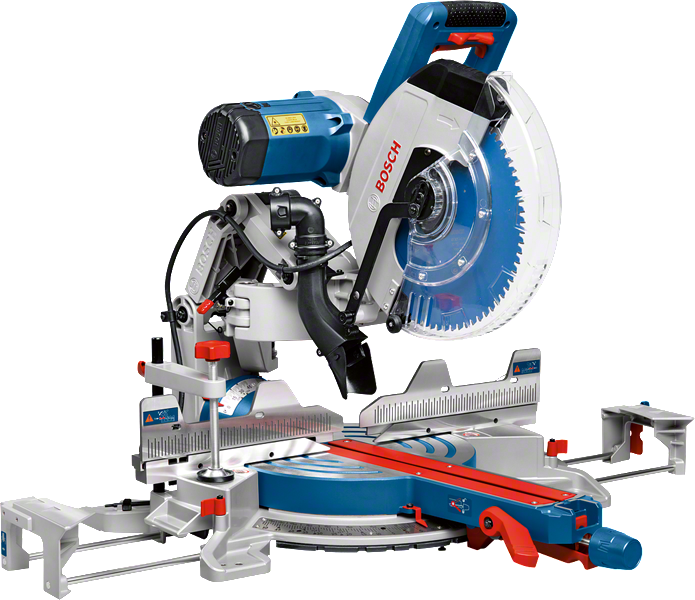

BoschGCM 12 GDL 斜切锯,配有 305 毫米刀片。
BoschGCM 12 GDL 斜切锯,配有 305 毫米刀片。

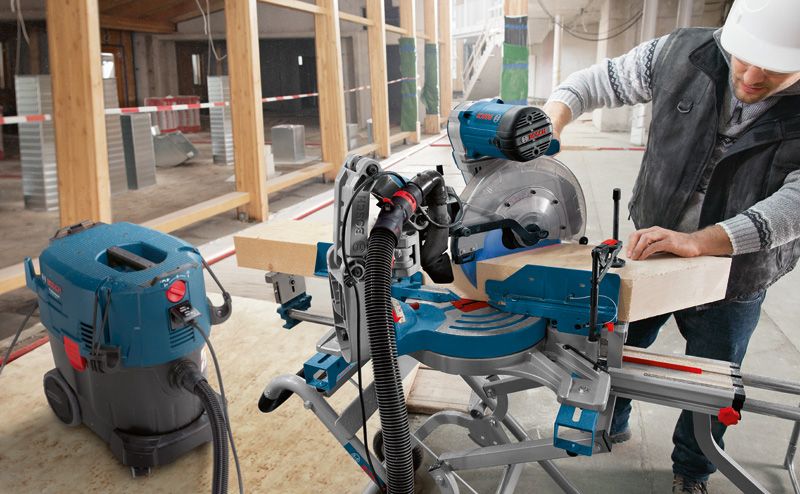

一名佩戴安全设备的人员在施工区域使用斜切锯切割木梁。

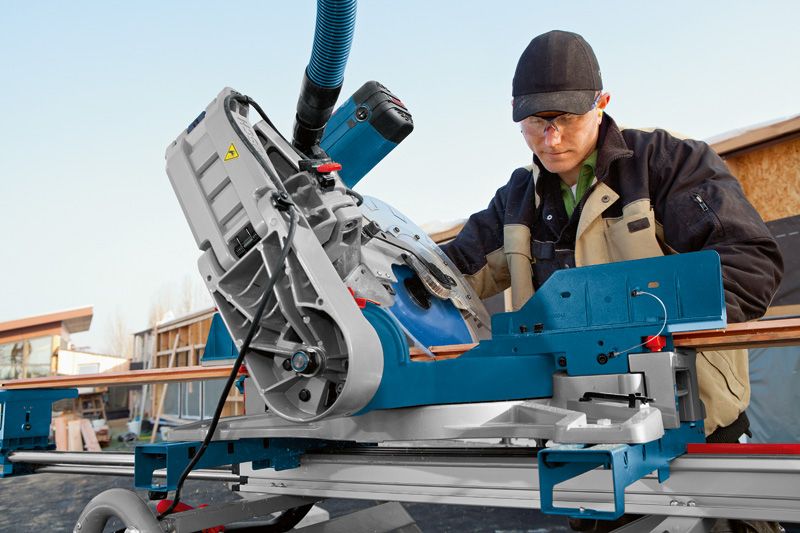

一名佩戴安全设备的人员在工地上操作斜切锯切割木材。

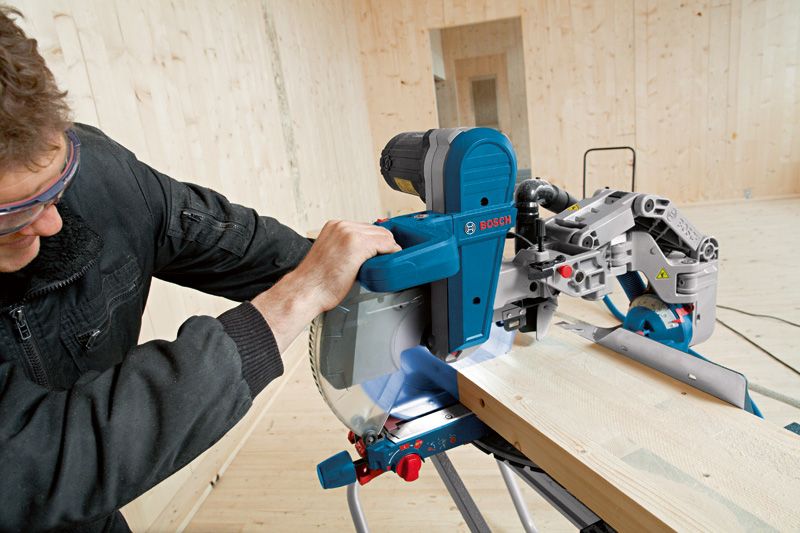

一名佩戴安全设备的人正在用滑动斜切锯切割木板。

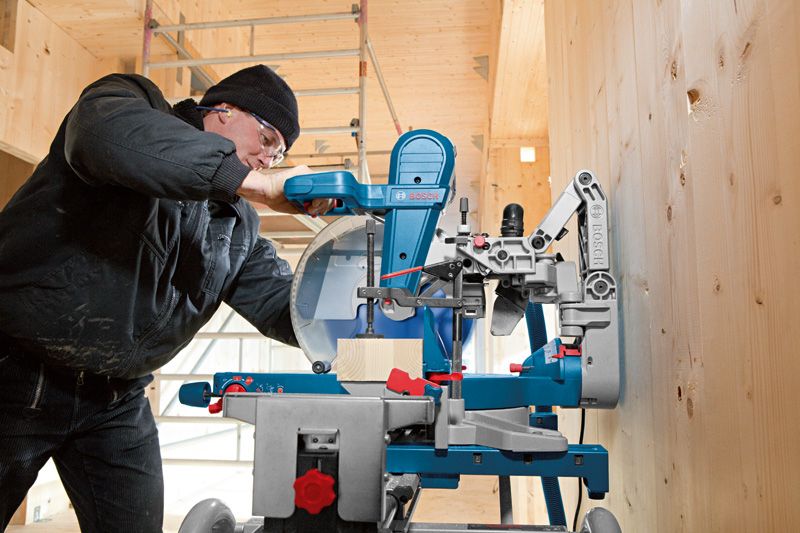

一名佩戴安全设备的人员在车间使用斜切锯切割木材。
1/6

GCM 12 GDL Professional

斜切据

重负

Highest-precision sawing: mitre saw with Bosch´s patented glide arm design

  • Innovative, maintenance-free glide arm is extremely robust for precision that lasts
  • Glide arm´s hinge design makes the mitre saw compact from front to back
  • Double line laser and top-quality saw blade ensure highly accurate cuts

功能和主要特点

节省空间的滑动臂
主轴锁
点击清洁系统
智能刹车系统
软启动

您的选择

  • 配附件套装
同类产品推荐 查找本地经销商

配附件套装 0 601 B23 680

GCM 12 GDL Professional

您的选择

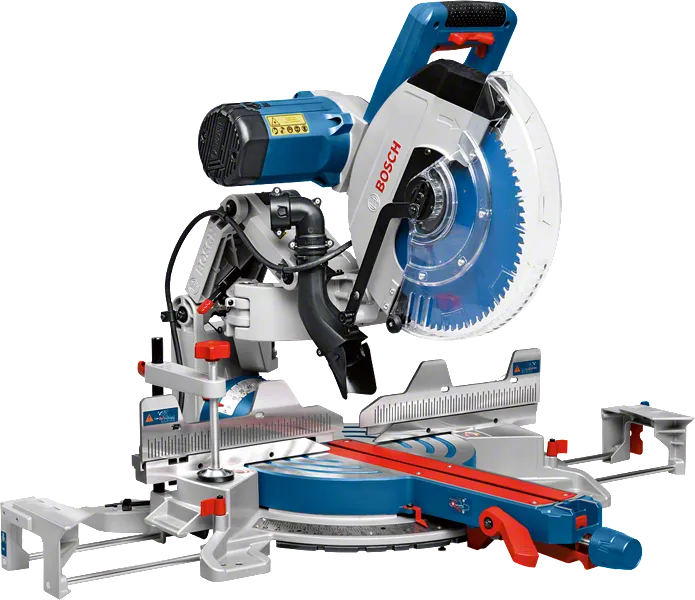

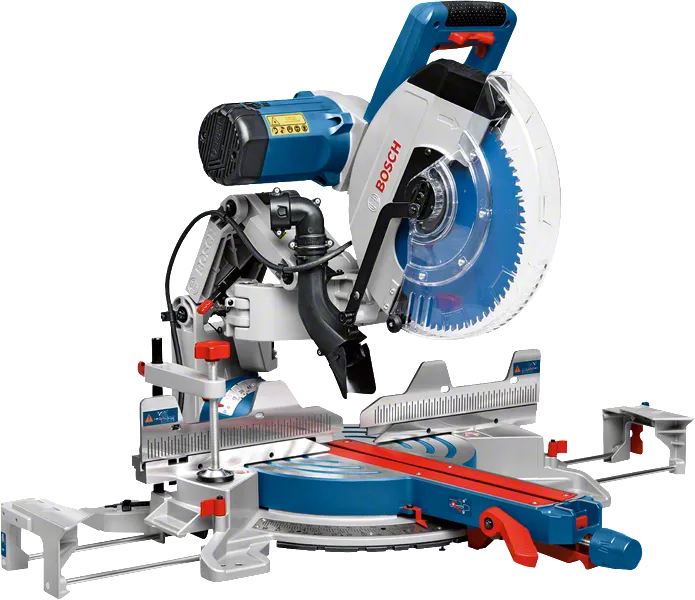

BoschGCM 12 GDL 斜切锯,配有 305 毫米刀片。
配附件套装

订货号: 0 601 B23 680

查找本地经销商

此型号中包括

  • 夹子(1 609 B02 585)
  • 扳手
  • 插入板
    订货号: 1 609 B02 375
  • 305 毫米 80 齿锯片

技术数据

其他数据

额定输入功率
1,800 W
锯片直径
305 毫米
斜断设置
52 ° L / 60 ° R
斜角设置
47 ° L / 47 ° R
锯片孔径
30 mm
切割能力,0°
104 x 341 mm
切割能力,45°斜角
104 x 240, 51 x 341

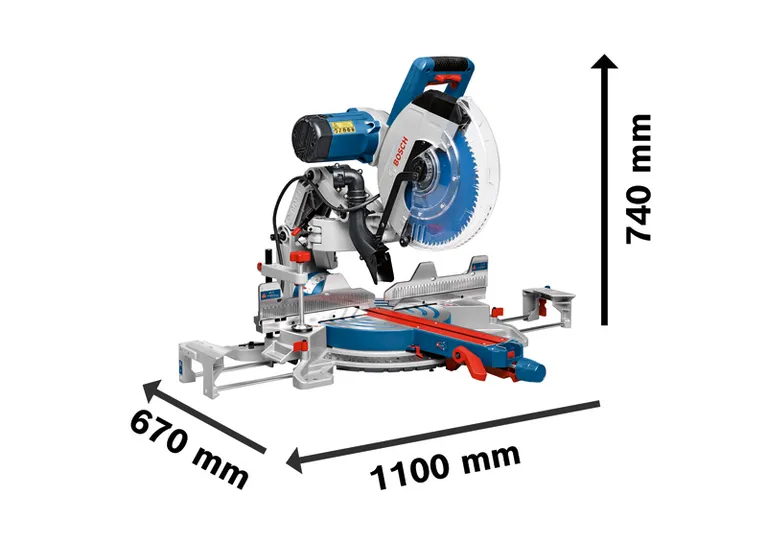

工具尺寸(长度 x 高度 x 宽度)
670 x1100 x740 mm
空载转速
4,000 rpm
重量
32.1 kg
BoschGCM 12 GDL 斜切锯,配有 305 毫米刀片。

* 在以下链接中查找有关偏差的更多信息: WAC

GCM 12 GDL Professional:更多信息

产品亮点

With the most accurate cutting results in the Bosch range, the GCM 12 GDL Professional is the top choice for jobs that demand highest precision. The mitre saw´s innovative, maintenance-free glide arm is extremely robust and offers high endurance. Thanks to the glide arm´s hinge design, the GCM 12 GDL Professional is compact from front to back. Equipped with a double line laser and top-quality saw blade, this mitre saw ensures highly accurate cuts reaching a cutting depth of up to 170 x140mm for L-profile (max thickness should be 36mm).

设备及应用

The GCM 12 GDL Professional is intended for cross, mitre bevel and groove cuts in wood, timber beams, and wood composites as well as in board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.

附加信息

The GCM 12 GDL Professional also includes features such as intelligent brake system, precision double line laser, and soft start.
